Amp Camp Amp Redux
Amp Camp Amp Redux

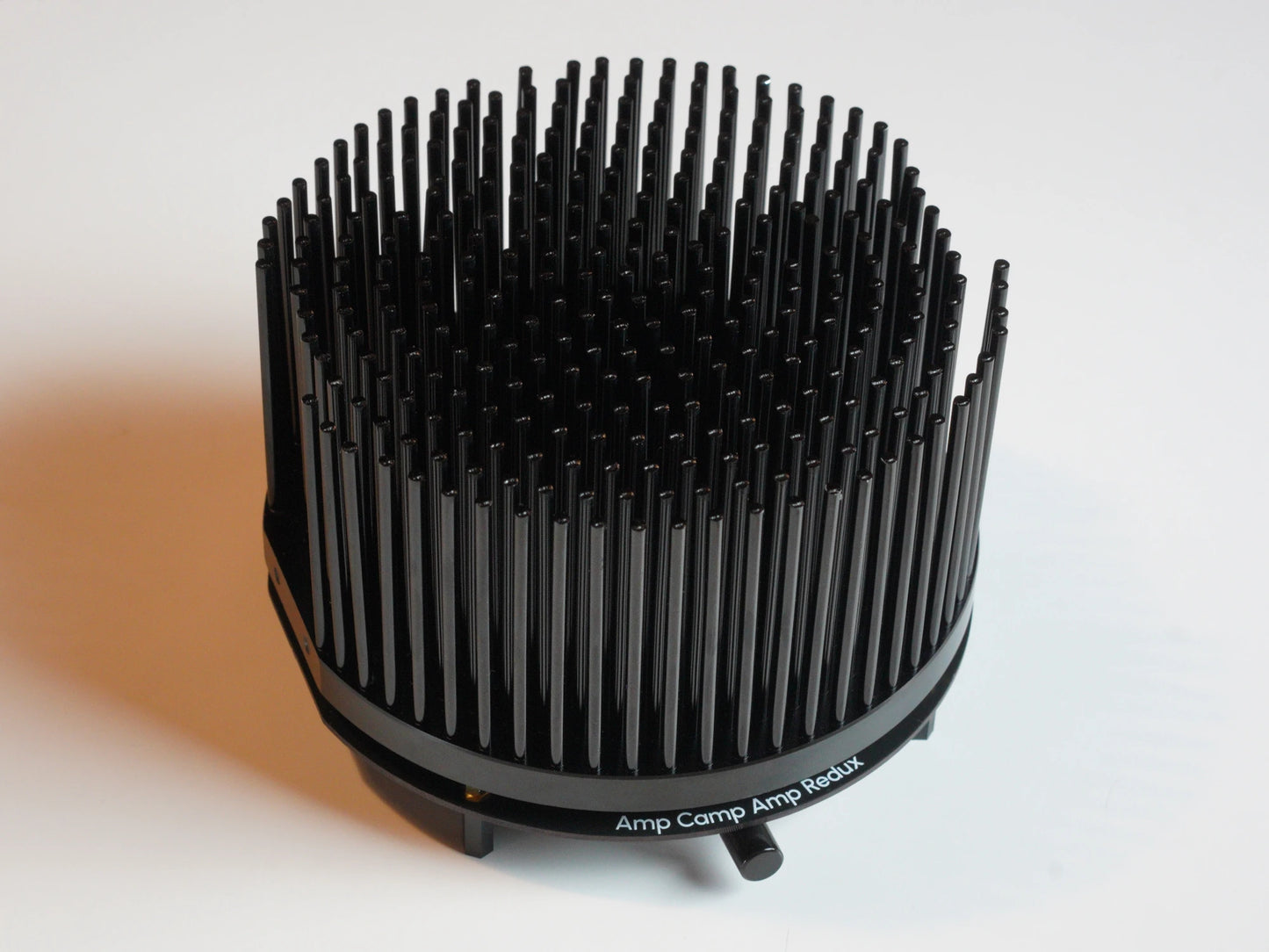

The original Amp Camp Amp circuit (V1.6) by Nelson Pass in a unique form factor optimized for easy assembly and reduced cost.
This kit contains all components, hardware, and power supplies needed to build two single ended class-A monoblock amplifiers.
- 8 watts into 8 ohms
- 10 dB gain
- 10KΩ input impedance
- Current stock uses JEFTs and MOSFETs sourced from Nelson Pass
6L6 at diyAudio has written detailed instructions to guide builders through the process.
Or watch the build guide on YouTube
Required tools:
- Soldering iron and solder
- Flush cutters
- Voltmeter
- 2.5mm hex key
To read about the history and development of this kit, jump into the discussion thread.
This extensive thread about the Amp Camp Amp is the best place to learn about the circuit itself.
If the Redux aesthetic isn’t your style, check out the version sold by the diyAudio Store.

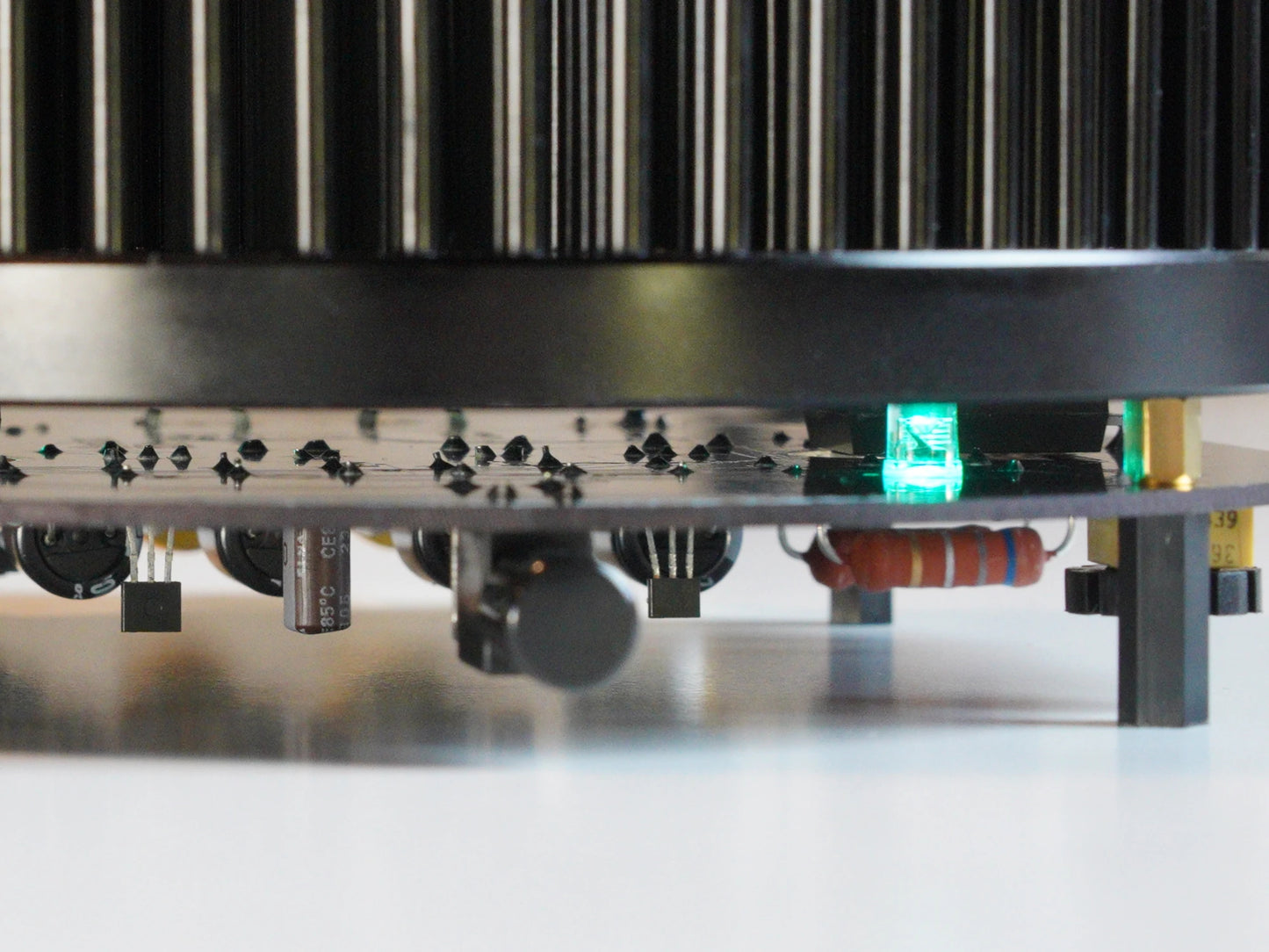

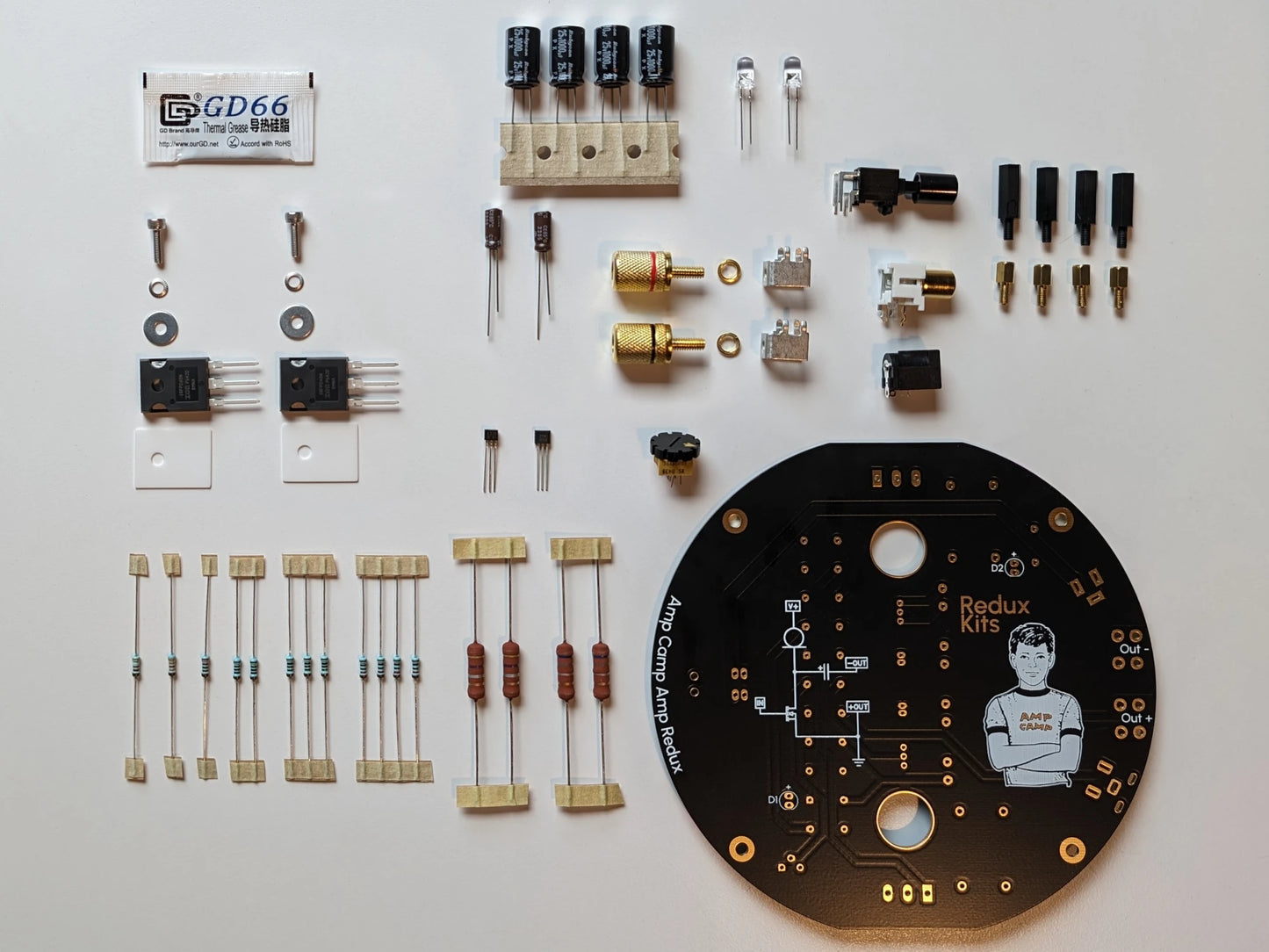

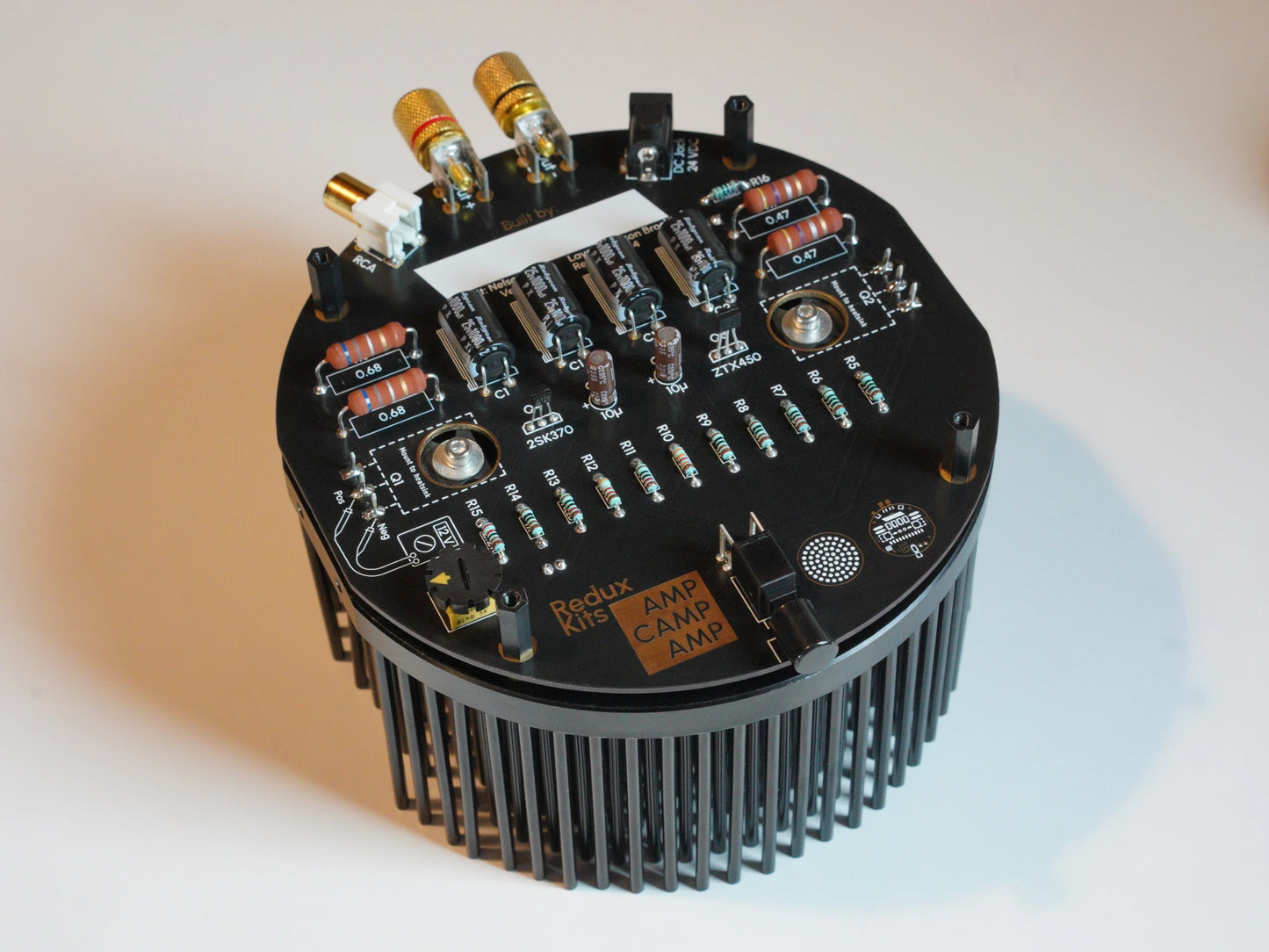

In this kit:
Board Reference | Part | Quantity |
- | Circuit boards | 2 |
- | Heatsinks | 2 |
Q1, Q2 | MOSFET, IRFP048 | 4 |
Q3 | BJT, ZTX450 | 2 |
Q4 | JFET, 2SK370 | 2 |
J1 | DC power jack | 2 |
J2 | RCA jack | 2 |
SW1 | Power switch | 2 |
C1, C2 | Capacitor, 1000µF | 8 |
C3, C4 | Capacitor, 10µF | 4 |
P1 | Trim potentiometer, 5k ohm | 2 |

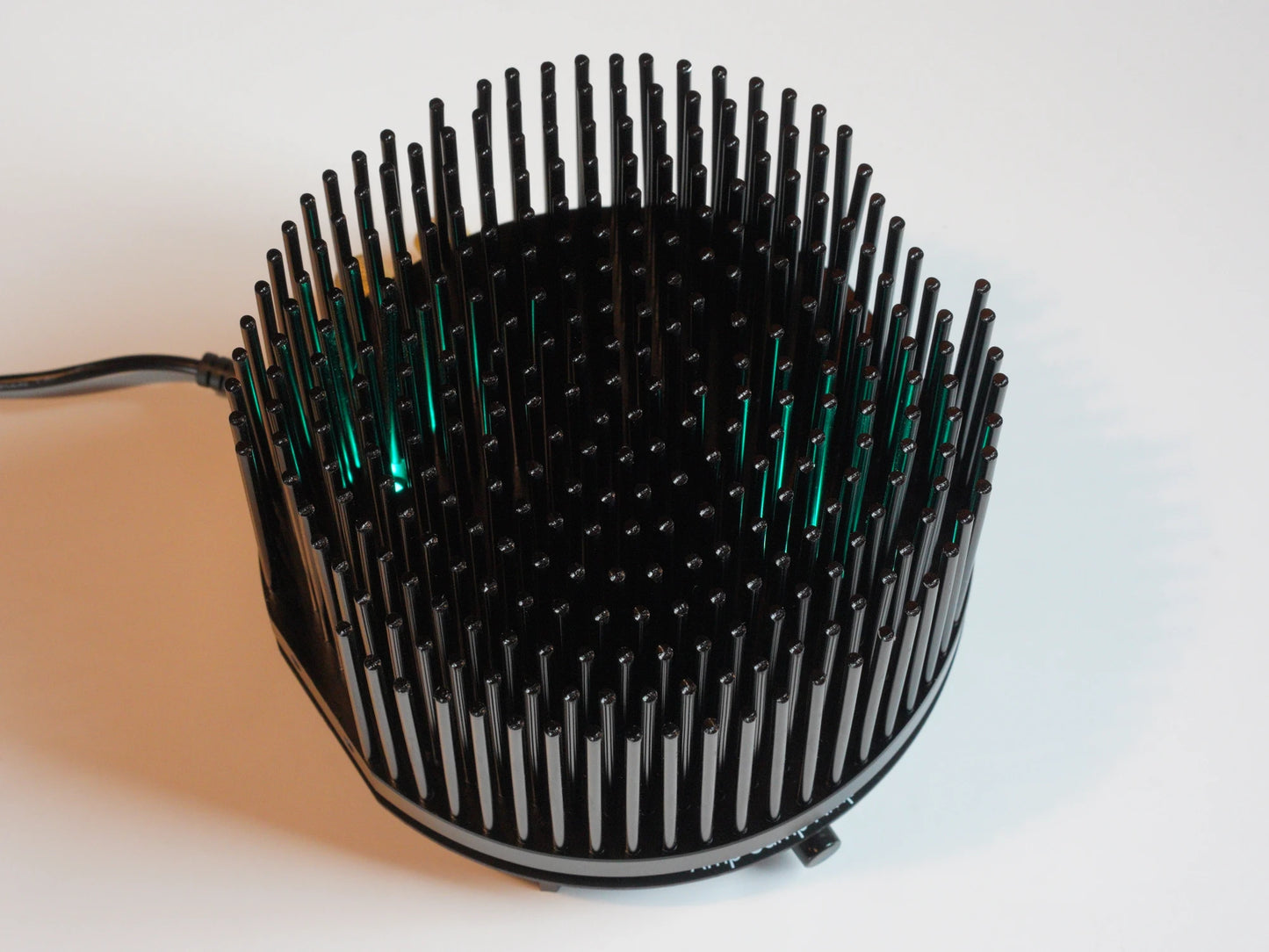

D1, D2 | LED, 5mm, cyan | 4 |
R1, R2 | Resistor, 0.47 ohm, 3 watt | 4 |
R3, R4 | Resistor, 0.68 ohm, 3 watt | 4 |
R5, R6 | Resistor, 100 ohm | 4 |
R8, R9, R14 | Resistor, 1k ohm | 6 |
R7, R11, R13, R16 | Resistor, 10k ohm | 8 |
R10 | Resistor, 332k ohm | 2 |
R12 | Resistor, 39.2k ohm | 2 |
R15 | Resistor, 2.2k ohm | 2 |
J3, J4 | Screw terminal | 4 |
- | Binding post, red | 2 |
- | Binding post, black | 2 |
- | Standoff, M3 × 6mm, brass | 8 |
- | Standoff, M3 × 15mm, nylon | 8 |
- | M3 × 10mm screw | 4 |
- | M3 fender washer | 4 |
- | Belleville washer | 4 |
- | Thermal pad TO-247, alumina | 4 |
- | Thermal grease | 1 |

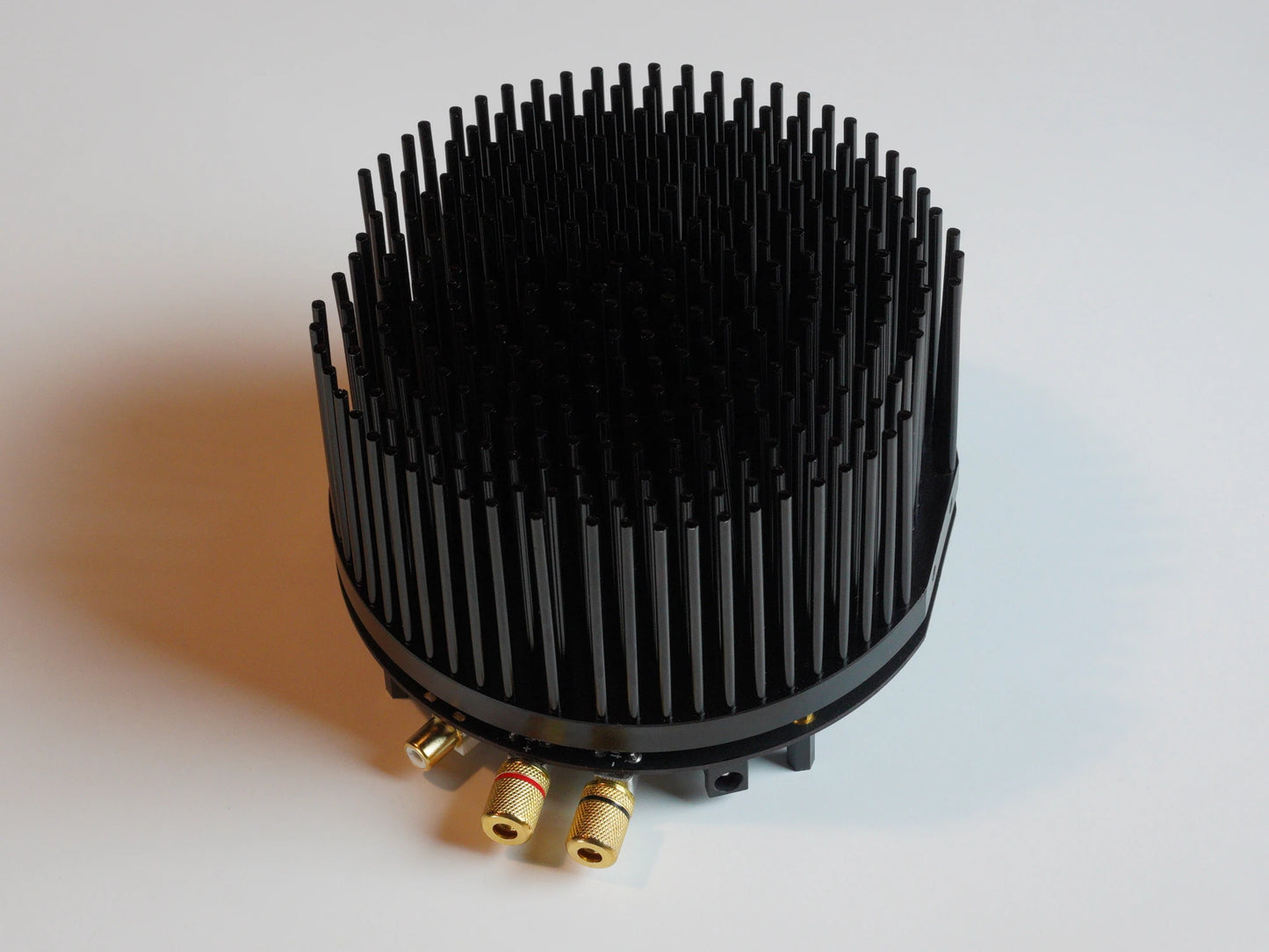

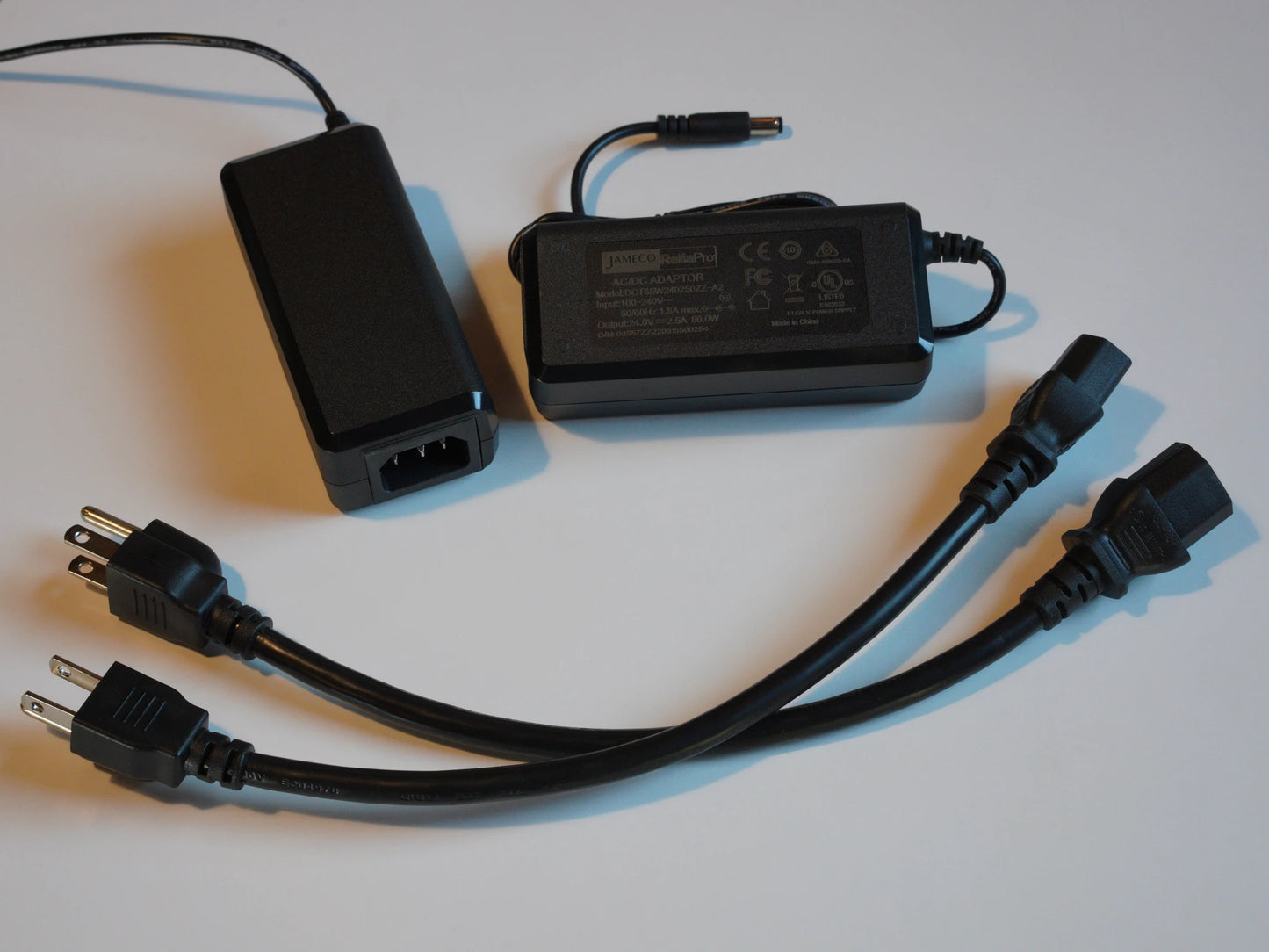

- | Power supply, 24VDC, 2.5A | 2 |
- | AC power cord | 2 |
Note, the supplied power cord is a NEMA-15P to C13 (North America plug).
