F5m Redux

F5m Redux

by Redux Kits

Regular price $480.00
Regular price Sale price $480.00
Sale Sold out

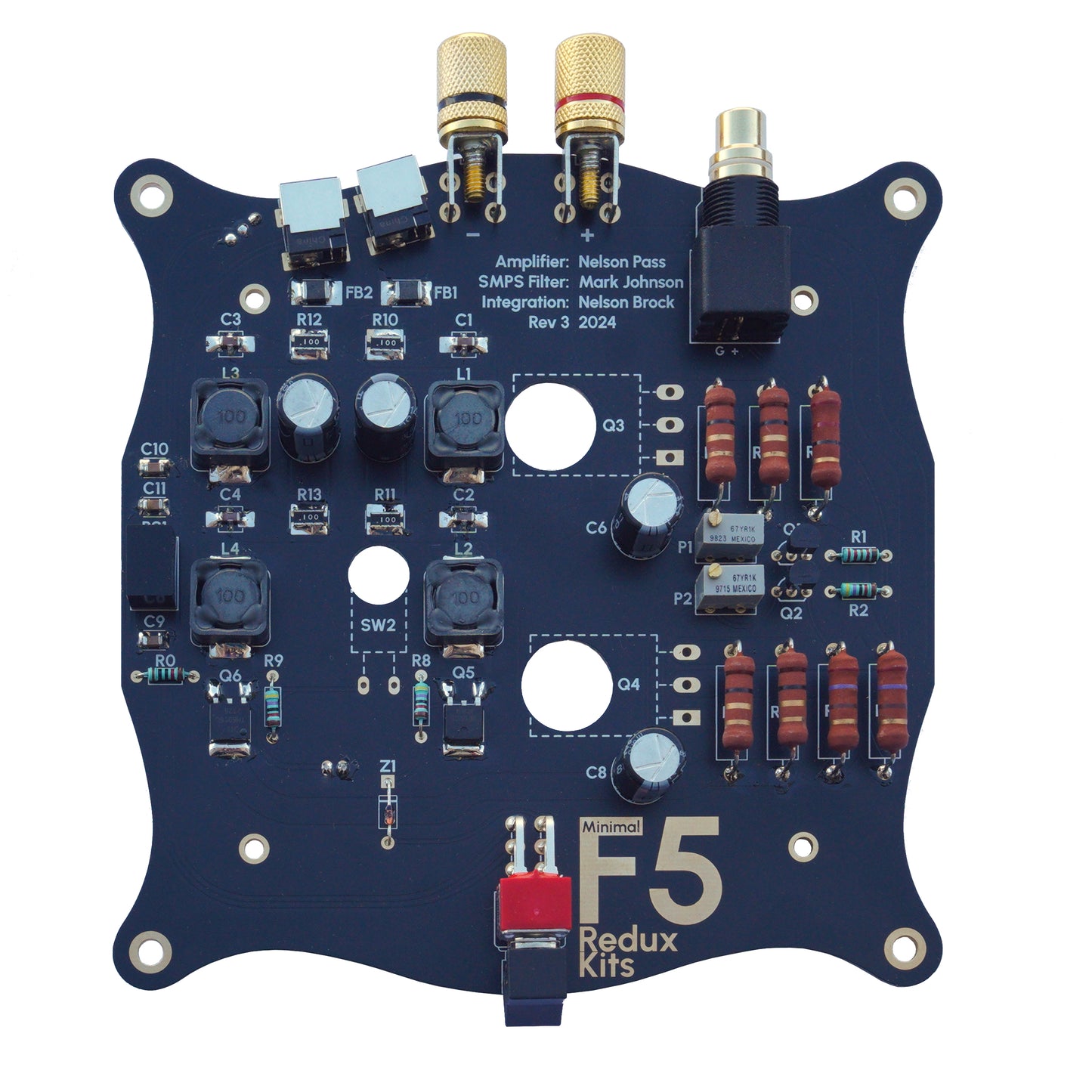

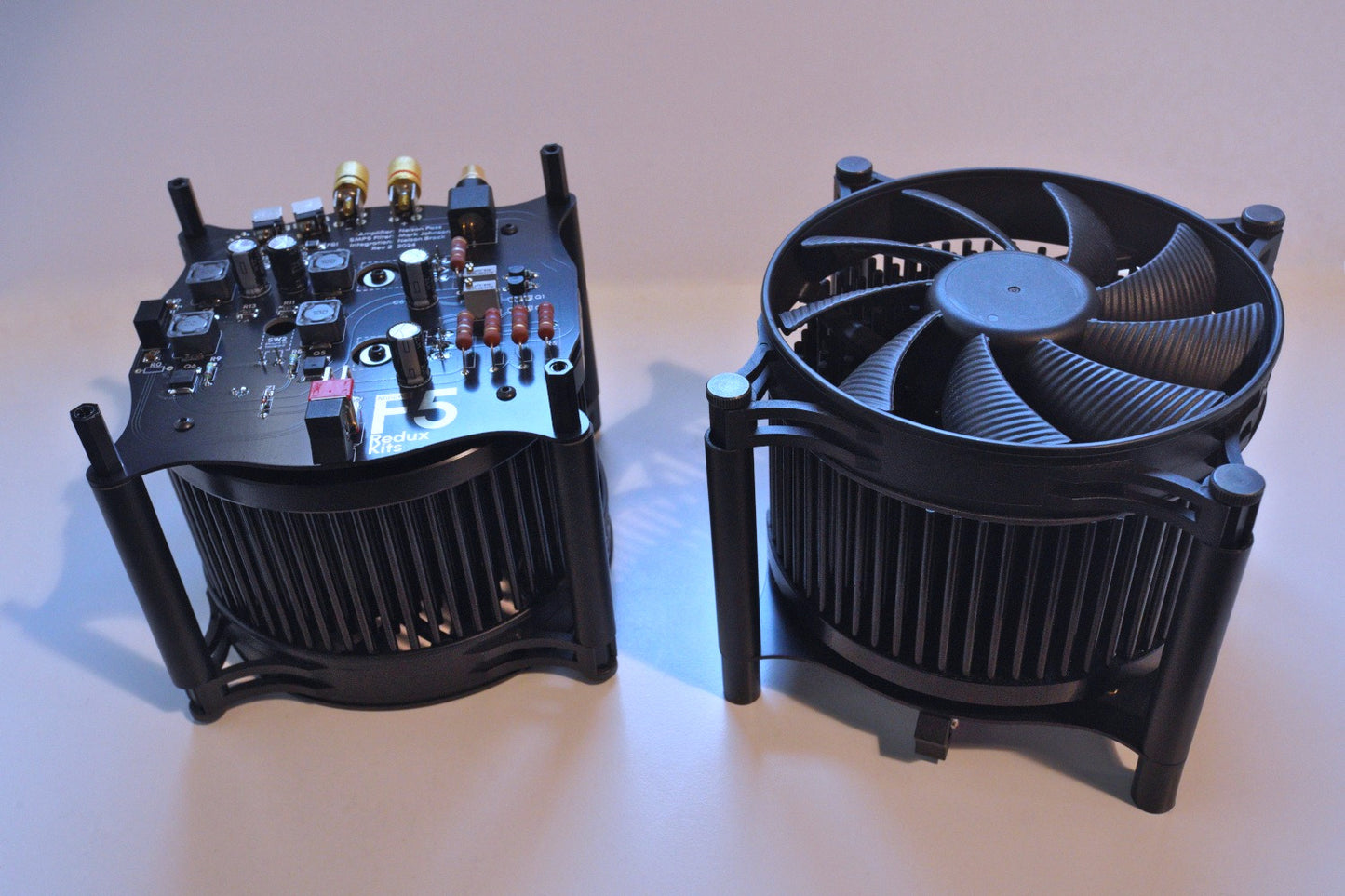

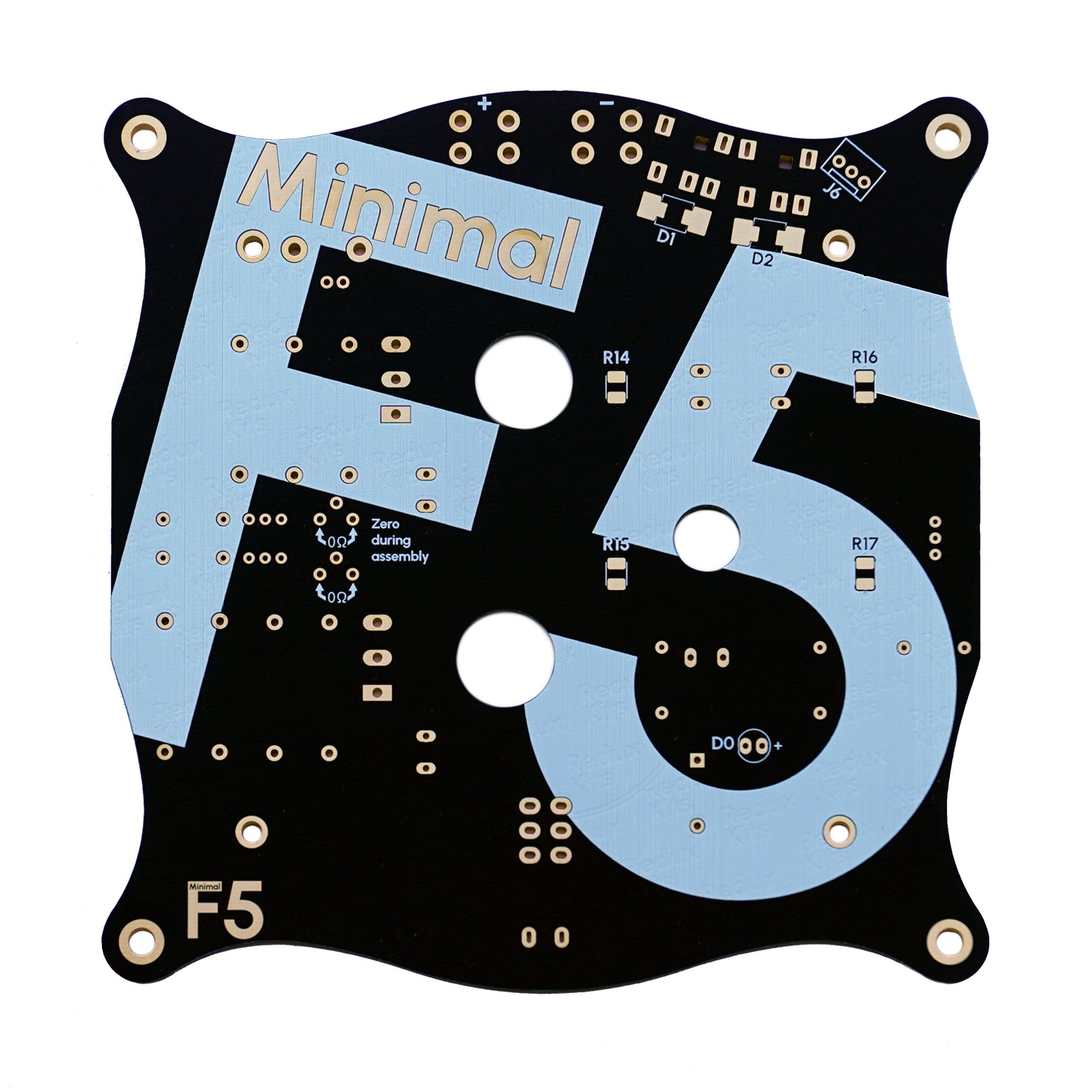

The F5m Redux is a variant of Nelson Pass' F5m. It uses the same schematic but ditches the costly chassis and swaps the DIY linear power supply for a set of "off the shelf" switching power supplies to let builders complete the project without any work on mains voltage circuitry. The boards integrate Mark Johnson's incredibly effective "AmyAlice" power supply filter to eliminate switching noise that might otherwise be on the power rails.

Each kit comes with all the parts needed to build two monoblock amplifiers.

Read more about the F5m Redux at diyaudio.com

Build guide

Complete parts list

Printable schematic

Schematic with part illustrations

A video build guide is in the works

Power output:

Speaker Impedance  RMS Power Peak Power
4 ohm 15W 30 W
8 ohm 25 W 50 W
16 ohm 12.5 W 25 W



Recommended tools:

  • Soldering iron
  • Flux core leaded solder 63/37
  • Tweezers
  • Flush cutters
  • Pliers
  • 2mm hex driver / allen key
  • Small flat blade screwdriver
  • Two multimeters (one will work in a pinch)
  • Isopropyl alcohol
